RVD

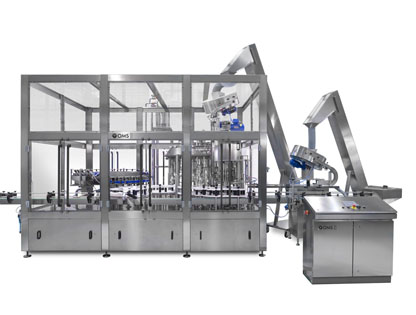

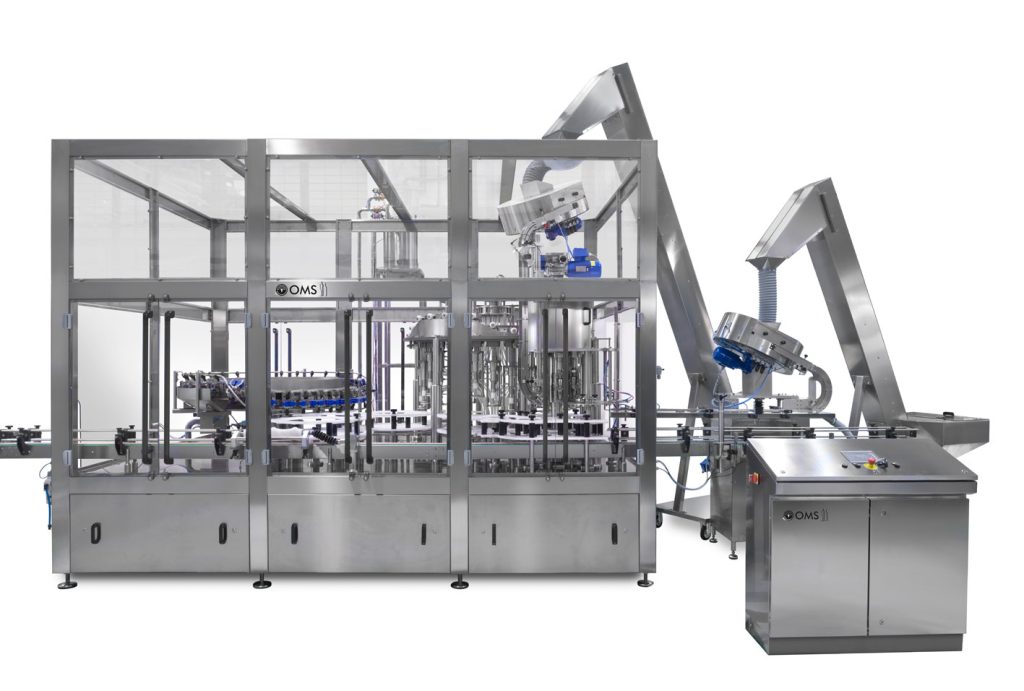

GRAVITY FILLING SYSTEM WITH DESCENDING VALVES

  • Internal neck diameter: from 16mm to 35mm
  • Bottle diameter: from 50mm to 100mm
  • Bottle height: from 180mm to 350mm

Machine Features

  • Automatic product level in bottle, with manual adjustment
  • Compact design
  • Base, structure, and nozzles in stainless steel
  • Seals and other plastic components made of food-grade certified materials
  • Height adjustment for different bottles with centralized spring
  • Vacuum adjustment based on product type with pressure gauge
  • Filter for pump unit protection
  • Borosilicate glass product recovery tank
  • Universal product passage tubes (for wines, beer, oil, spirits, hot fruit juices)
  • Fully accessible and sanitizable product passage circuit
  • Availability of special nozzles for filling miniature bottles
  • Product feed: 1″ hose fitting with 25mm diameter tube

Production

Ultrafill-2 Model: from 200 to 400 b/h – depending on bottle volume and products to be filled

Ultrafill-4 Model: from 400 to 600 b/h – depending on bottle volume and products to be filled



Note: the fillers operate without compressed air and without the need for an external product feed pump.

GENERAL CHARACTERISTICS

The RVD series filling machines use a level filling system with descending valve and are suitable for filling still (non-carbonated) products such as liqueurs, distillates, juices, oil, vinegar, sauces and water.

Also available in the Neck-Handling version for PET bottles and with the Hot-Filling system, the operation of the “tank-less” type fillers is gravity with the recovery of the product in an external tank (and with automatic recirculation).

Greater filling speed, absence of vacuum / light vacuum devices and less maintenance (due to the absence of bottle lifter pistons), the fast washing speed make this type of machine an extremely more efficient and appreciated machine than traditional rotary fillers with product tank.
