AV

CLOSURE SYSTEM FOR ALUMIUNUM CAPS

  • Internal neck diameter: from 16mm to 35mm
  • Bottle diameter: from 50mm to 100mm
  • Bottle height: from 180mm to 350mm

Machine Features

  • Automatic product level in bottle, with manual adjustment
  • Compact design
  • Base, structure, and nozzles in stainless steel
  • Seals and other plastic components made of food-grade certified materials
  • Height adjustment for different bottles with centralized spring
  • Vacuum adjustment based on product type with pressure gauge
  • Filter for pump unit protection
  • Borosilicate glass product recovery tank
  • Universal product passage tubes (for wines, beer, oil, spirits, hot fruit juices)
  • Fully accessible and sanitizable product passage circuit
  • Availability of special nozzles for filling miniature bottles
  • Product feed: 1″ hose fitting with 25mm diameter tube

Production

Ultrafill-2 Model: from 200 to 400 b/h – depending on bottle volume and products to be filled

Ultrafill-4 Model: from 400 to 600 b/h – depending on bottle volume and products to be filled



Note: the fillers operate without compressed air and without the need for an external product feed pump.

GENERAL CHARACTERISTICS

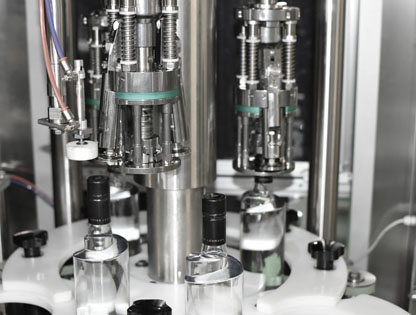

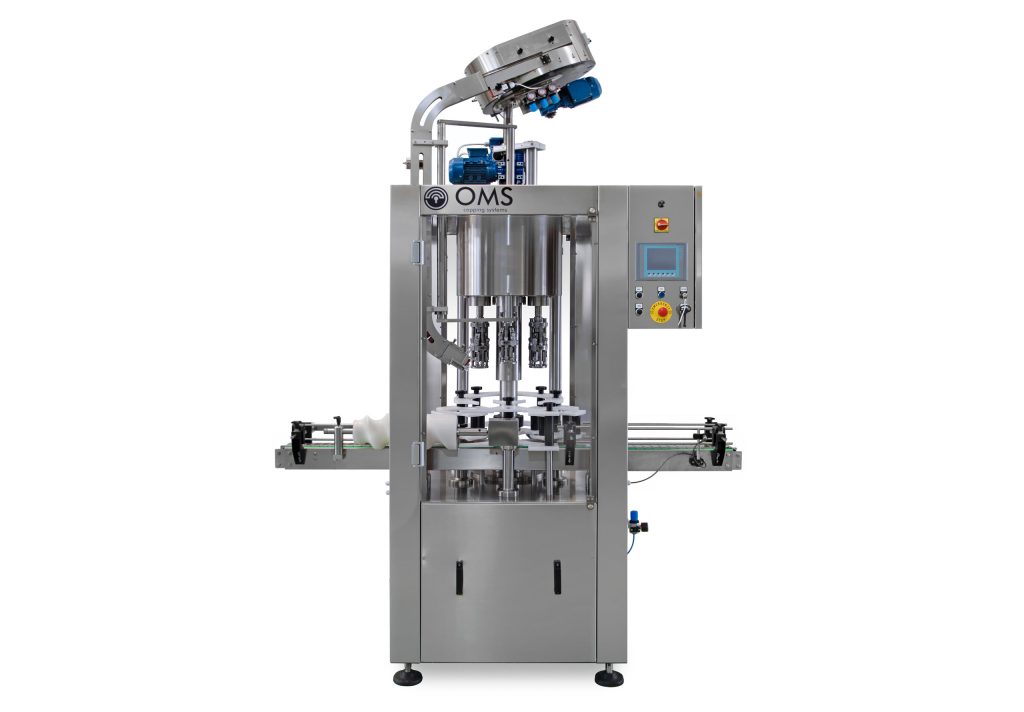

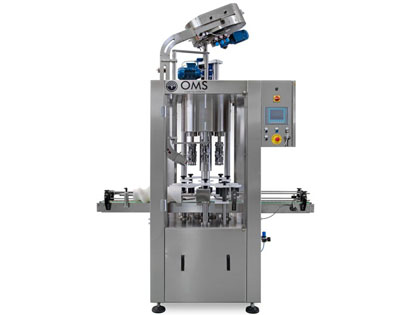

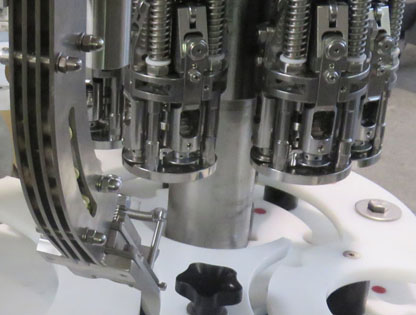

The capping machines of the AV series use rolling heads with 4 arms (entirely made of stainless steel) and are suitable for closing glass bottles with ROPP / STELVIN / STELVIN LUX / WAK aluminum caps.

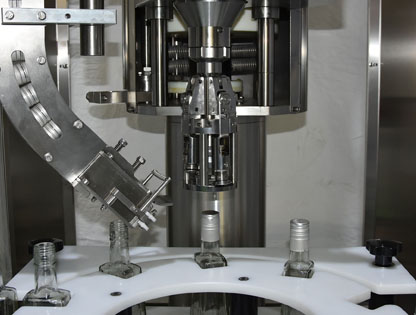

The cap feeding system can be mechanical (honeycomb or centrifugal) or vibrating while the caps are taken by tearing directly from the bottle neck.

Available both in the single-head version with production up to 3.000 bph, and in the 15-head rotary version with up to 30.000 bph, all the machines can be supplied in the ATEX / IECEX version suitable for installation in environments with the presence of an explosive atmosphere.
