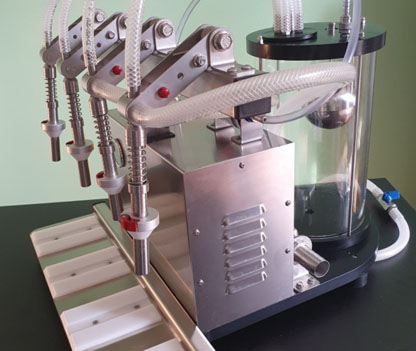

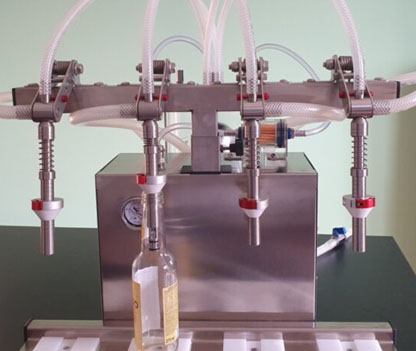

Ultrafill 2 / 4 Manual Filler
Ultrafill 2 / 4 Manual Filler
- Internal neck diameter: from 16mm to 35mm
- Bottle diameter: from 50mm to 100mm
- Bottle height: from 180mm to 350mm
Machine Features
- Automatic product level in bottle, with manual adjustment
- Compact design
- Base, structure, and nozzles in stainless steel
- Seals and other plastic components made of food-grade certified materials
- Height adjustment for different bottles with centralized spring
- Vacuum adjustment based on product type with pressure gauge
- Filter for pump unit protection
- Borosilicate glass product recovery tank
- Universal product passage tubes (for wines, beer, oil, spirits, hot fruit juices)
- Fully accessible and sanitizable product passage circuit
- Availability of special nozzles for filling miniature bottles
- Product feed: 1″ hose fitting with 25mm diameter tube
Production
Ultrafill-2 Model: from 200 to 400 b/h – depending on bottle volume and products to be filled
Ultrafill-4 Model: from 400 to 600 b/h – depending on bottle volume and products to be filled
Note: the fillers operate without compressed air and without the need for an external product feed pump.
GENERAL CHARACTERISTICS
| Usable Products |
wine, spirits, oil, re-fermented beer |
|---|---|
| Hourly Production: |
200-600 bottles/h |
| Number of filling valves: |
2 or 4 |
| Voltage: |
220V-single phase |
| Power consumption: |
125W |
| Compressed air: |
no |
| Container type: |
glass bottles |
| Min/max bottle diameter: |
50-100mm |
| Min/max bottle height: |
180-350mm |
| Dimensions (mm): |
500 x 500 x h.550 |
| Weight (kg): |
17-23 |
