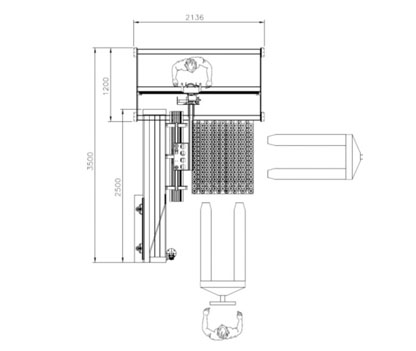

The machine can handle pallets measuring 1000 x 1200 mm (max. 2000 mm high) with a flat interlayer between the layers of plastic or rigid cardboard containers or trays.

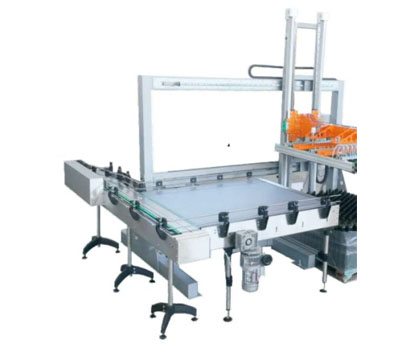

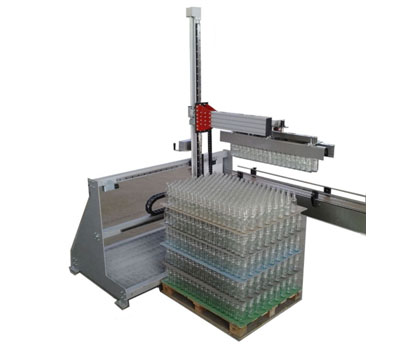

Stationary platform depalletizer; with this system, the pallet, already removed from the cardboard cover, can be loaded into the machine using a pallet truck or forklift
into the dedicated centering frame that ensures correct positioning.
Robust and compact machine structure with linear guides to ensure precise movements.

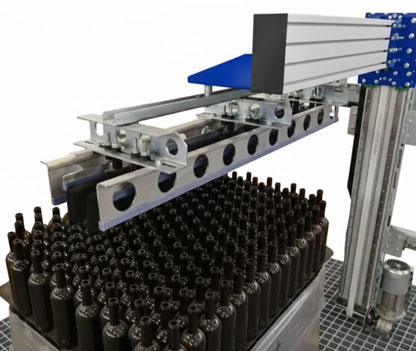

Inflatable rubber gripping head for 3 rows of bottles, a solution suitable for bottling lines with production up to 3,000 b/h

Alternatively, a version with a gripping head for picking up a full tier of bottles, in which case productivity increases considerably.

Magnetic gripping heads for depalletizing metal cans are also available

The format change is simple and very quick by adjusting the position of the rubbers according to the format.

Machine equipped with electrical panel and system + control panel.

MACHINE OPERATION

Operator Operations:

• full pallet insertion
• removal of packaging and interlayer on each floor
• Header ascent and descent with electrical impulses via joystick (manual)
• automatic head stop on bottles via limit switch
• Bottle picking and releasing via manual control
• manual lateral translation of the right and left trolley
• automatic head stop on unloading table via limit switch
• automatic table chain stop when containers are released
• removal of empty pallet by the operator

N.B.: versions available for depalletizing glass jars and cans
