4 Head Piston Filler

GENERAL CHARACTERISTICS

The four head piston filler is a fully automatic machine, which fills a pre-select amount of product into a container.
Standard Cylinders can fill from 100ml to 1000ml. Larger cylinders are available on request.
The filling accuracy, product being filled and the container size will determine the correct size cylinder to be used.
The machine is manufactured entirely in stainless steel and non-ferrous materials.
The bottles enter the machine on a conveyor; a pneumatic gate system allows the containers to stand under the filling heads and keeps the rest of the containers isolated on the conveyor line.
The filling operation then starts to the pre-set stroke.
Each filling nozzle is fitted with its own positive shut off valve, which shuts off the product flow once filling is completed and prevents excess dripping.
The machine is fitted with a diving system.
A product hopper tank is supplied with the machine and is pneumatically controlled by means of either a modulating valve or probe or level switch.
- PLC Controlled
- Fully automatic
- Positive shut off valves
  - Filling speed depends on size of container / bottles and viscosity of liquid/product

Ask for Information

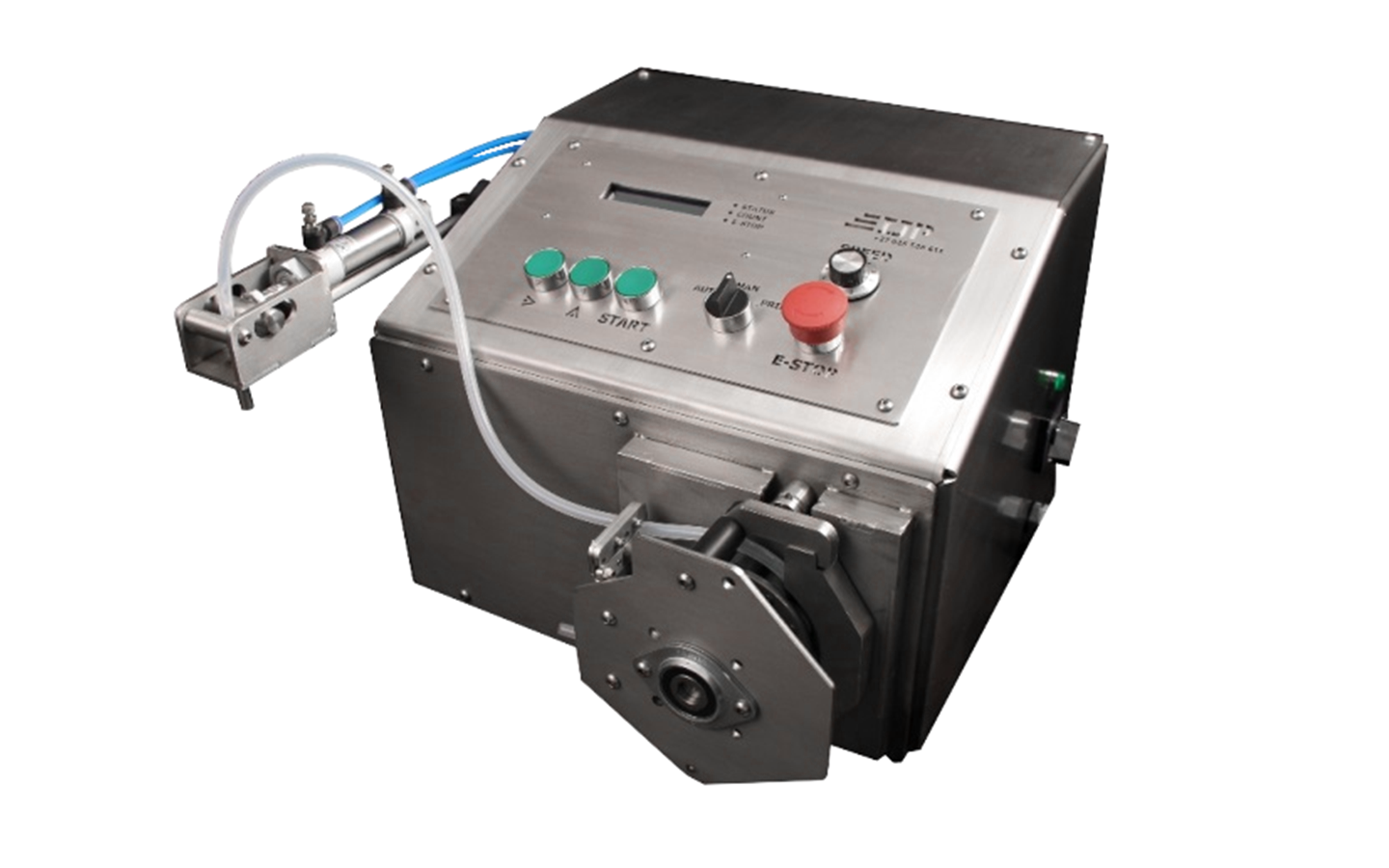

A single head Peristaltic pump filling machine is a portable machine and can be easily transported to various workstations.
The filler fills a pre-select amount of product into a container.
The filling volume is infinitely adjustable.
The filling accuracy, product being filled and the container size will determine the correct size pump to be used.
The machine can either be operated in manual or automatic mode. In manual, the operator needs to press the start button to start one filling cycle. In automatic, the operator needs to press the start button once and the machine will start the filling cycle.
After each cycle there will be a short time delay for the operator to place the next bottle under the nozzle before the filling cycle continues.
Filling speed depends on size of container / bottles and viscosity of liquid/product.
To ensure good filling accuracy and repeatability, product needs to be supplied to the machine at a constant pressure or a Balance tank needs to be used.

Ask for Information
