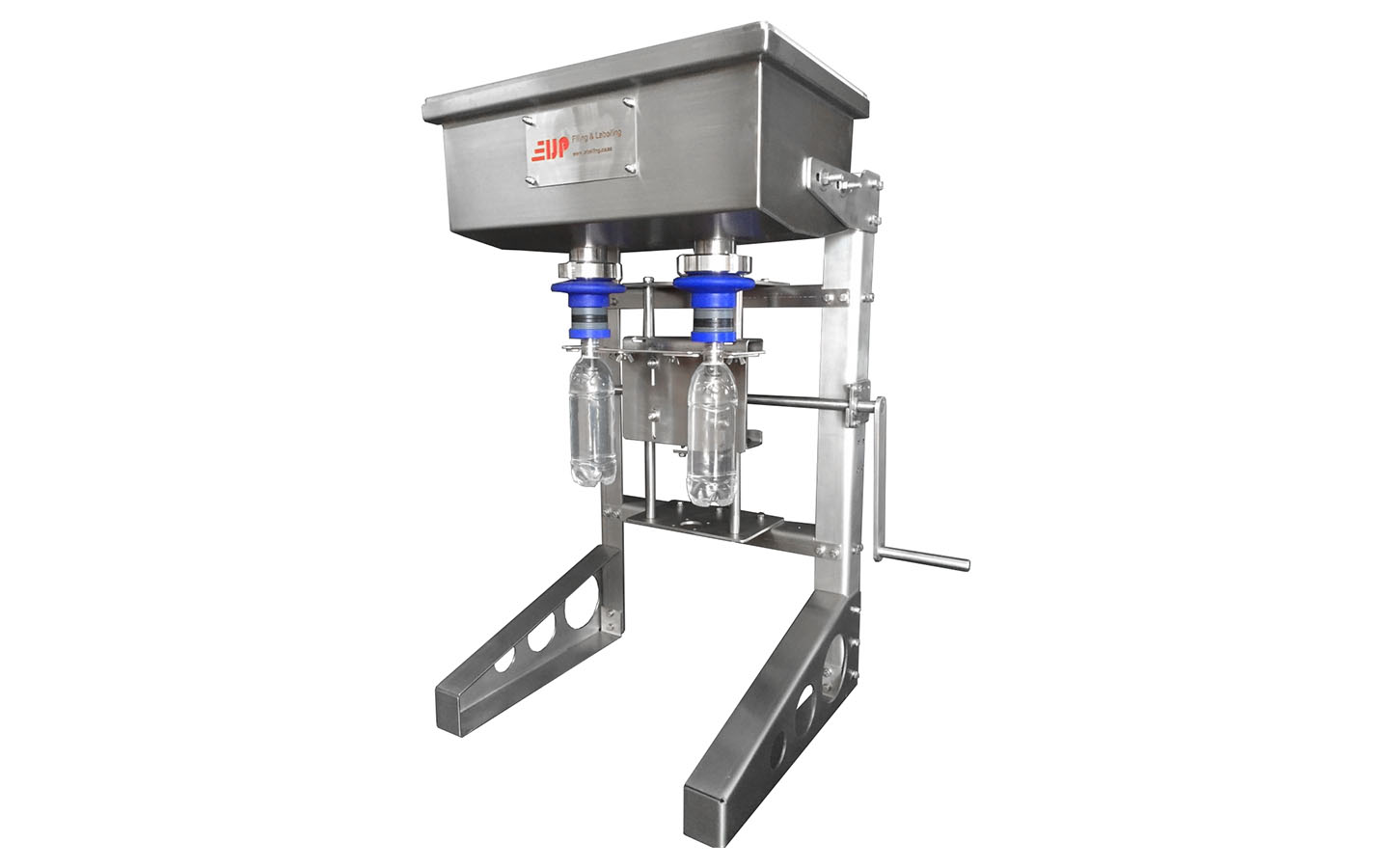

Entry Level Two head Manual gravity level filler with manual lifting platform

GENERAL CHARACTERISTICS

Gravity level Filling principle is used
Filling speed of up to 450 bottles per hour on still water in 500ml PET bottle
The liquid level in the product hopper is controlled by means of a plastic float valve
Machine is manufactured entirely from stainless steel
Lifting filling platforms are lifted by hand so no electricity or compressed air is required
Filling nozzles are actuated by the containers and therefore have a built in no bottle no fill function
Filling level is adjustable
Neck handling is used so with the same neck size PET bottle different bottle sizes can be handled without any adjustments
Machine suitable for 300ml-1500ml

Ask for Information

Unit is more suitable for glass bottles

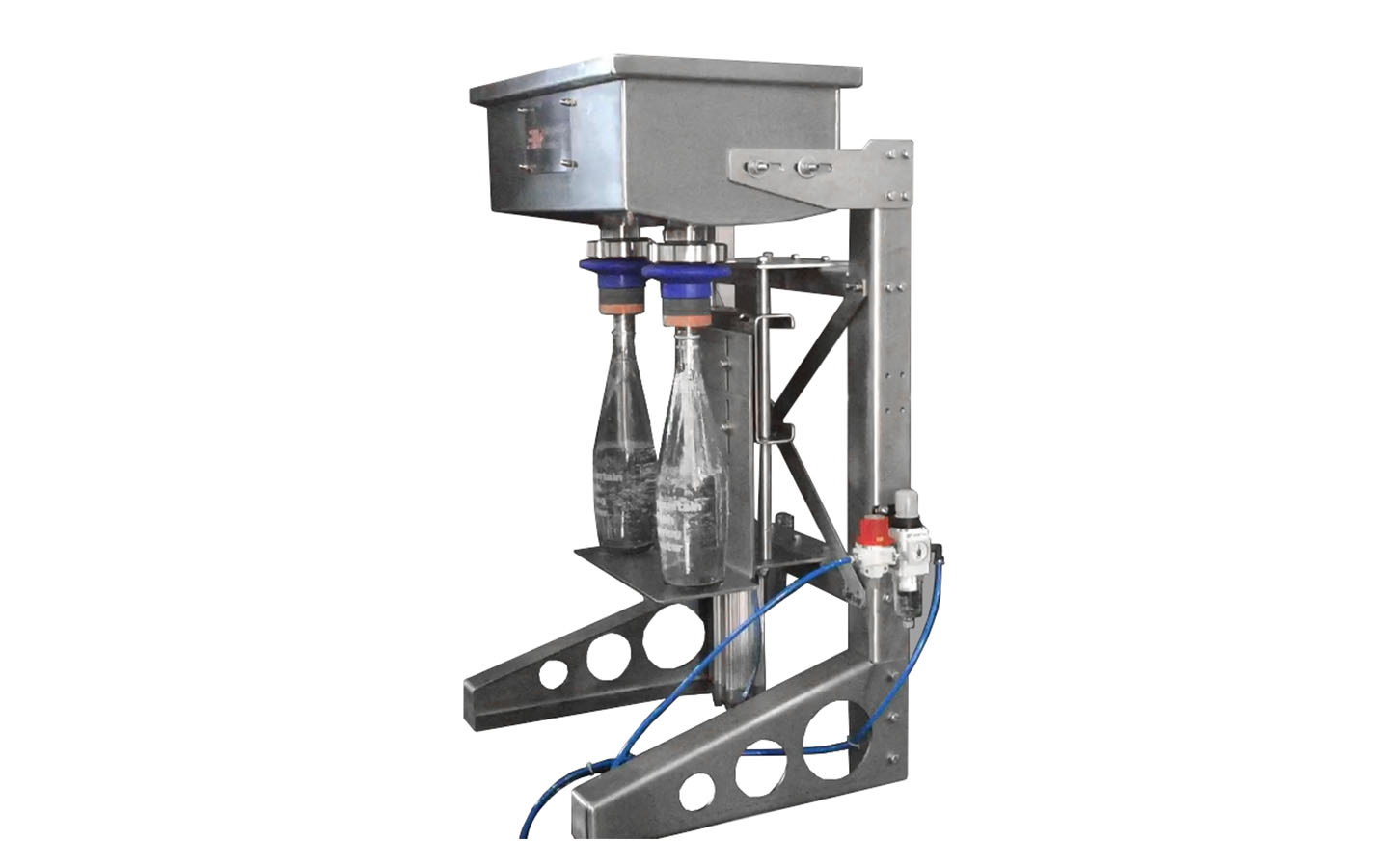

Gravity level Filling principle is used
Filling speed of up to 600 bottles per hour on still water in 500ml PET bottle
The liquid level in the product hopper is controlled by means of a plastic float valve
Machine is manufactured entirely from stainless steel
Lifting filling platforms are lifted by pneumatic cylinder so compressed air is required
Filling nozzles are actuated by the containers and therefore have a built in no bottle no fill function
Filling level is adjustable
The lifting platform is height adjustable for different bottle sizes
Machine suitable for 300ml-1500ml

Ask for Information
